Stretch Wrap Equipment

Muller ITW / Stretch Packaging Systems

GAP Services, Inc. (GAP) represents the complete line of Muller - ITW stretch packaging systems. From the revolutionary, high speed, and economical Octopus (303 / 404 / 505 / 606 / 808) line, to the traditional automatic overhead rotary tower (Cobra 1525) and turntable (Raptor 1525) style machines, to semi-automatic (Raptor 525 / Cobra 525) systems, Muller has a machine to suit your needs.

Automatic Rotary Ring Series
(Octopus) Stretch Wrappers

Since their introduction in 1983, Octopus stretch wrapping machines have been known and respected globally as the standard for pallet unitization. The revolutionary "wrapping ring" on all Octopus models provides unequaled productivity, versatility and economy. Simply put, no other stretch wrapping machine can match its performance. And, with over 2,000 Octopus installations throughout the world, the Octopus is time-tested and field proven in the most demanding of applications.

Please see this Introduction to The Muller Octopus providing a detailed discussion of the concepts, features, benefits, etc. of the Octopus.

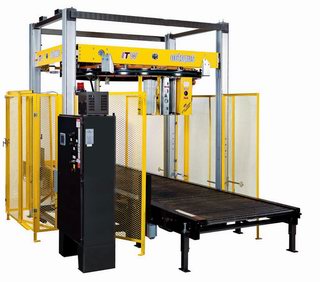

Octopus 303
• Compact, fits into tight areas
• Fits over existing conveyors
• Lowest priced Octopus automatic
• Wraps up to 40 loads per hour

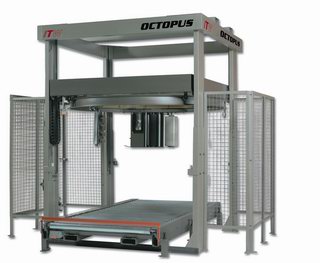

Octopus 404
• Designed for medium to high speed
• Mitsubishi PLC controller
• Wraps up to 60 loads per hour

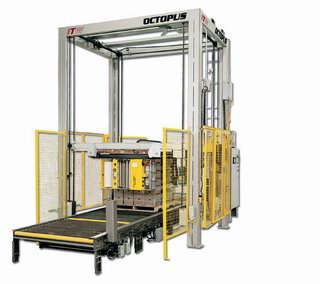

Octopus 505 / 606 / 808
• Designed for high speed applications
• Allen Bradley PLC controller
• Wraps from 80 - 120 loads per hour
• Several option packages available

Octopus Comparison Chart

Model

303

404

505

606

808

Loads per hour

Up to 60

Up to 70

Up to 80

Up to 100

Up to 120

Rotation Speed

16 rpm

21 rpm

30 rpm

40 rpm

50 rpm

Maximum load size

48"W x 50"L x 80"H

48"W x 50"L x 80"H

48"W x 50"L x 80"H (*1)

48"W x 50"L x 80"H (*1)

48"W x 50"L x 80"H (*1)

Minimum load size

36"W x 36"L x 28"H
(film clamp justified)

36"W x 36"L x 28"H
(film clamp justified)

36"W x 36"L x 28"H
(film clamp justified)

36"W x 36"L x 28"H
(film clamp justified)

36"W x 36"L x 28"H
(film clamp justified)

Maximum load weight

Limited only by conveyer capacity

Limited only by conveyer capacity

Limited only by conveyer capacity

Limited only by conveyer capacity

Limited only by conveyer capacity

Pre-stretch type

ST2000 (Strain Gauge)

ST2000 (Strain Gauge)

ST2000 (Strain Gauge)

ST2000 (Strain Gauge)

ST2000 (Strain Gauge)

Voltage

480 VAC, 30 amp,3 phase, 60 Hz (*2)

480 VAC, 3 phase, 30 amps (*2)

480 VAC, 3 phase, 30 amps (*2)

480 VAC, 3 phase, 30 amps (*2)

480 VAC, 3 phase, 30 amps (*2)

Pneumatic

80 psi, 3 CFM (clean, dry air)

80 psi, 3 CFM (clean, dry air)

80 psi, 3 CFM (clean, dry air)

80 psi, 3CFM (clean, dry air)

80 psi, 3 CFM (clean, dry air)

Lift Motor

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

Lift Control

Variable frequency drive

Variable frequency drive

Variable frequency drive

Variable frequency drive

Variable frequency drive

Rotation Motor

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

480 VAC - SEW Eurodrive

Machine Weight

3,500 pounds

4,000 pounds

4,500 pounds

4,500 pounds

4,500 pounds

Option

Option

Option

Option

Ootion

Option

Option

Option

Option

Option

Option

Option

Option

Option

Option

Option

Option

Option

Option

Option

No

No

Option

Option

Option

No

No

Option

Option

Option

No

No

Option

Option

Option

Notes: *1 = Oversize load options available
           *2 = denotes standard, other power options available

Standard configurations listed above. Please contact us for other available configurations.


Conventional Automatic
Turntable Series (Raptor) and
Rotary Arm Series (Cobra) Stretch Wrappers

Rotary Tower Automatic, Cobra 1525

The unique rotating arm of the Cobra 1500 represents yet another way to effectively wrap loads without spinning them on a turntable. This method of wrapping is especially useful when wrapping light loads, fragile loads, or any load which might fall apart if spun on a turntable. The Cobra 1500 is available in a wide range of prices and capabilities and offers several options to meet even the most challanging stretch packaging operations.

Turntable Automatic, Raptor 1525

For customers who prefer a traditional turntable style stretch wrapping machine, the Raptor 1500 offers reliability and efficiency. The Raptor 1500 is designed and built for long service life and low maintenance operation. Heavy gauge steel, ring gear drive systems and PLC controls are just a few of the features that makes the Raptor 1500 the most rugged turntable wrapper in the industry.

Conventional Automatic Comparison Chart

Model

Loads per Hour

Up to 45

Up to 45

Up to 30

Up to 35

Rotation Speed

Adjustable up to 16 rpm

Adjustable up to 16 rpm

12 rpm (optional to 18 rpm)

12 rpm (optional to 18 rpm)

Maximum load size

50"W x 54"L x 80"H (*1)

50"W x 54"L x 80"H (*1)

50"W x 50"L x 80"H (*1)

50"W x 50"L x 80"H (*1)

Minimum load size

36"W x 36"L x 28"H

36"W x 54"L x 80"H

24"W x 24"L x 28"H

36"W x 36"L x 28"H (film clamp justified)

Conveyer elevation

16" (*3)

20" (*3)

0" (*3)

18" (*3)

Maximum load weight

4,000 pounds

4,000 pounds

Floor Capacity

dependent on conveyor

Pre-stretch type

SG3000 (Strain Gauge)

SG3000 (Strain Gauge)

SG3000 (Strain Gauge)

SG3000 (Strain Gauge)

Voltage

240 VAC, 20 amp, 1 phase, 60 Hz (*2)

480 VAC, 30 amp, 3 phase, 60 Hz (*2)

120 VAC, 20 amps, 1 phase, 60 Hz (*2)

480 VAC, 30 amp, 3 phase, 60 Hz (*2)

Pneumatic

80 psi, 3 CFM (Clean, dry air)

80 psi, 3 CFM (Clean, dry air)

80 psi, 3 CFM (clean, dry air)

80 psi, 3 CFM (clean, dry air)

Turntable Size

52" x 52" x 3/8" thick octagonal formed steel plate with 4" skirt

76-1/2" diameter thick round steel formed plate with 4" skirt

N/A

N/A

Rotation Bearing Type

20" diameter ring gear

33" diameter ring gear

Dual pillow block bearings

Dual pillow block bearings

Rotation Drive System

Ring and pinion

Ring and pinion

Dual V-belt drive

Dual V-belt drive

Turntable Conveyer Rollers

N/A

3-1/2" on 3-3/4" centers; every roller driven; rollers set in pillow block bearings

N/A

N/A

Installation

Lift truck portable front and rear

Floor Mounted

Floor mounted gantry frame

Floor mounted gantry frame

Notes: *1 = Oversize load options available
           *2 = Denotes standard, other power options available
           *3 = Denotes standard, other pass height options available

N/A = Not Applicable

Standard configurations listed above. Please contact us for other available configurations.


Conventional Semi-Automatic
Turntable Series (Raptor) and
Rotary Arm Series (Cobra) Stretch Wrappers

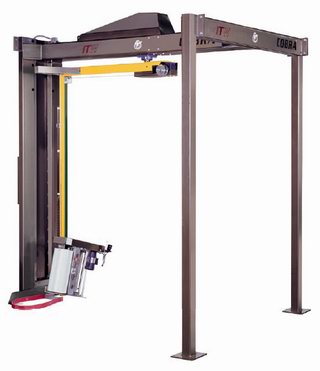

Rotary Tower Semi-Automatic, Cobra 525

The Cobra 500 provides a cost effective means of wrapping in a semi-automatic enviroment. It is particularily suited to wrapping light loads, fragile loads, or any load which might fall apart if spun on a turntable.

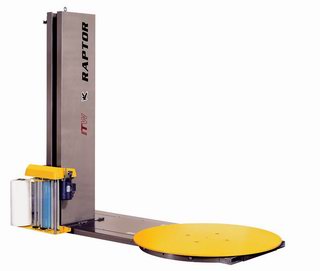

Turntable Semi-Automatic, Raptor 525

The Raptor 500 provides a cost effective means of wrapping in a semi-automatic enviroment. It is suited to applications where portability, ease of use, and an extensive array of options are the primary considerations.



Semi-Automatic Comparison Chart

Model

Loads per hour

Up to 35

Up to 35

Rotation Speed

12 rpm

12 rpm

Maximum load Size

60"W x 60"L x 85"H (*1)

50"W x 50"L x 80"H (*1)

Maximum load weight

4,000 pounds

Floor Capacity

Pre-stretch type

SG3000

SG3000

Carrige Speed

Adjustable down speed

Adjustable down speed

Operator Interace

Push button controls

Push button controls

Voltage

120 VAC, 15 amp, 1 phase, 60 Hz

120 VAC, 15 amp, 1 phase, 60 Hz

Turntable Diameter

60" (1/2" thick. smooth plate)

N/A

Rotation Drive system

Spring tensioned chain

Dual V-Belt

Installation

Lift truck portable, front and rear

Column mounted or floor mounted

Machine Weight

1,700 pounds

Column mounted: 1,400 pounds
Floor mounted: 2,100 pounds

Note: *1 = Oversize load options available

Standard configurations listed above. Please contact us for other available configurations.


Other Products

GAP Services, Inc. (GAP) is proud to represent various manufacturers of stretchwrappers and other equipment typically integrated with or supportive of the stretchwrapping function in your facility. This includes (but is not limited to) Stretch Wrappers, Horizontal (Orbital) Wrappers, Pallet Conveyors, Roll Handling Equipment, Print and Apply Labellers, Palletizers and Unitizers, Robotic Palletizers, Shrink Wrappers, Pneumatic Manipulators, and more. Our skills as a Systems Integrator provide you a "one stop" option for installing and maintaining your packaging for distribution equipment.

We BUY and SELL used, end of lease, and excess stock Stretch Wrapping equipment. Please see our stock page for details on our current offering. If you have something to offer, contact us with details!

When buget or delivery concerns are an issue, we can often support your needs through our Used Equipment offerings. We use only our own in-house technicians to recondition, customize and support these machines. Of course, this capability makes possible our trade-in program. Allow us to support your financial concerns by offering a trade-in value for your old equipment against the purchase of new or reconditioned equipment.

Used, Consignment, and Reconditioned Equipment

GAP Services, Inc. (GAP) is in the business of supplying, upgrading, and maintaining our customer's "packaging for distribution" equipment. Check out our "in stock" machines which are available at attractive prices and deliveries. That's a "win", "win" situation for you. Unlike some other company's offerings, most of these machines are the same makes and models which we would supply to you straight from the factory. We provide the same expertise, engineering resources, installation capabilities, and maintenance on these machines as we would for brand new machines. We also offer customization of these machines to meet with your mechanical and electrical specifications.

Support

In this regard GAP Services, Inc. (GAP) is able to set itself above our competition. Staffed with full time, experienced, factory trained and certified stretch wrap technicians, and capable support personel, we are able to service all makes and models of stretch wrappers. GAP provides 24 Hour Emergency Service and Technical Support, Machine Breakdown Service, Preventative Maintenance (PM) Service, Parts, Installations, Retrofits and Rentals.

We also have experience with and can supply Horizontal (Orbital) Wrappers, Pallet Conveyors and Roll Handling Equipment, Print and Apply Labellers, Palletizers and Unitizers, Robotic Palletizers, and Pneumatic Manipulators.

Please contact us for details.


Muller SG3000 Film Carriage Retrofit

The SG3000 film carriage is retrofitable to all makes of pallet stretch wrappers, semi-automatic, turntable automatic, and rotary tower automatics.  The SG3000 film carriage has demonstrable superiority over older and competitor designs. The primary advantages of the design are safety, reliability, ease of film loading, long term consistency of prestretch levels, and stretchwrap film savings.

Features:
  • easier to change film
  • safer to change film
  • easily retrofittable to any previous model Muller stretch wrapper
  • maximize film economy (250% plus prestretch)
  • greater reliability
  • can be installed, on site, in about 1 day
For more information visit: http://www.genautopkg.com/SG3000page.htm


Contact Us for details.
