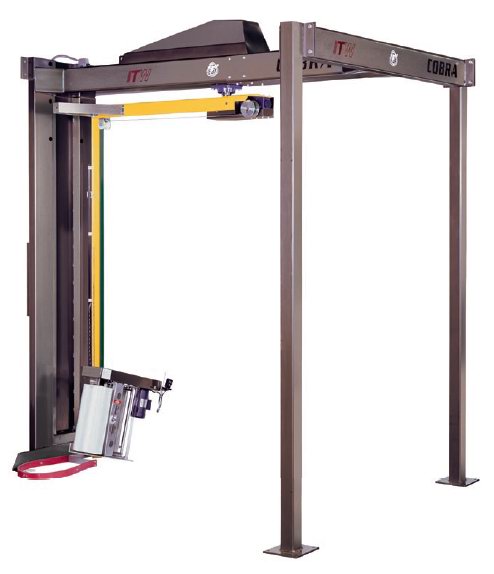

Muller Cobra 525
 Overview
The Cobra 525 uses low cost 20" width film to process
15 to 35 loads per hour. An optional 30" film delivery
system is available to improve speed, but at a higher minimum
film cost per pallet load. The Cobra's advanced "low
mass" design offers faster starting and stopping with
less stress and strain, plus lubrication-free main drive
components for exceptionally low-maintenance operation.
Rotary Arm Advantages
- The Cobra 525 can straddle an existing conveyor, scale,
or AGV, saving valuable floor space.
- The Cobra is perfect for unstable or light loads that
cannot be moved or rotated during wrapping.
- Because the load remains stationary, wrapping speeds
can be higher than turntable systems allow.
- When not in use, the rotary arm tucks in against the
wall or column, freeing up useable floor space
Standard Machine Specifications:
click here for a PDF.
Click here for comparison
charts to help you find a Semi-automatic Stretch
Wrapper model to suit your needs and budget.
|
|
|
|

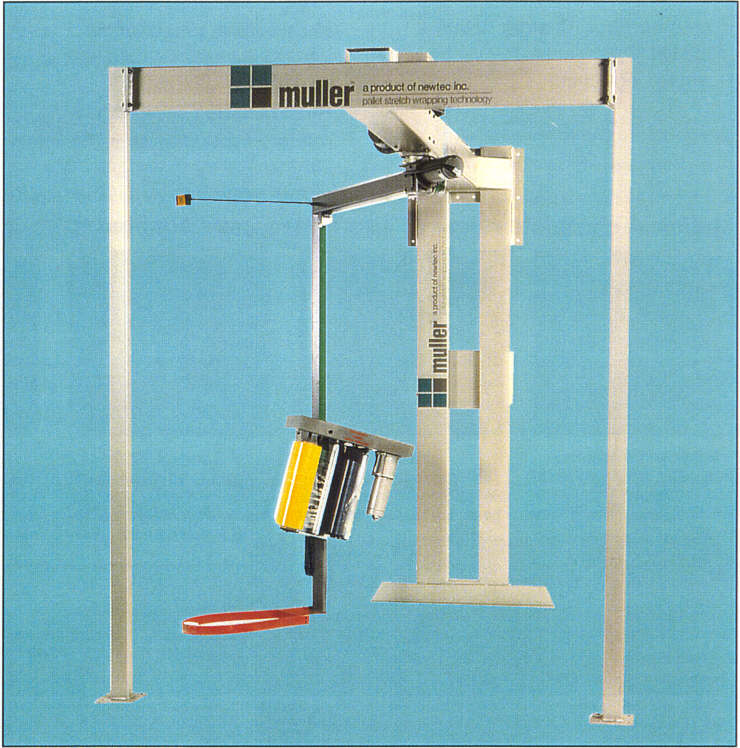

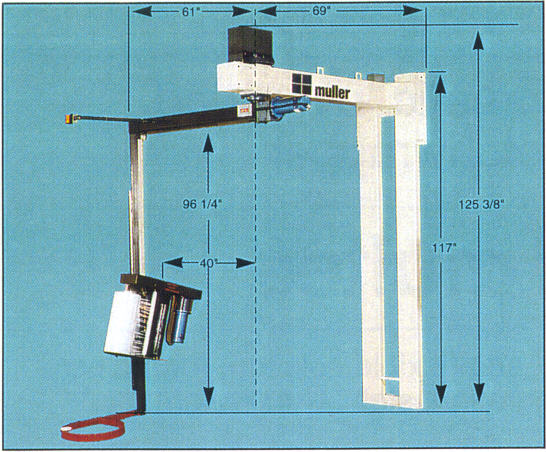

The Cobra 525 functionally replaces former models:
2501, 2502, Multee, Cobra I, Cobra II, Cobra III,Cobra IV, Cobra
32, Cobra 500, Ultra III and Ultra IV.
|
Please Note: The above specifications
do not represent all options available for these machine.
Please contact us for more information.
|
|
|
Muller's new models of stretch wrappers.
|
 Muller
Octopus 303 - automatic rotary
ring
• Compact, fits into tight areas
• Fits over existing conveyors
• Lowest priced Octopus automatic
• Wraps up to 40 loads per hour
|
 Muller
Raptor 1525 - automatic
turntable
For customers who prefer a traditional turntable style stretch
wrapping machine, the Raptor 1500 offers reliability and efficiency.
The Raptor 1525 is designed and built for long service life and
low maintenance operation. Heavy gauge steel, ring gear drive
systems and PLC controls are just a few of the features that makes
the Raptor 1525 the most rugged turntable wrapper in the industry.
|
|
 Muller Raptor 525 - semi-automatic
turntable
The Raptor 525 provides a cost effective means of wrapping in a
semi-automatic environment. It is suited to applications where portability,
ease of use, and an extensive array of options are the primary considerations.
|
 Muller Cobra 1525 - automatic
rotary arm
The unique rotating arm of the Cobra 1525 represents a means to
effectively wrap loads without spinning them on a turntable. This
method of wrapping is especially useful when wrapping light loads,
fragile loads, or any load which might fall apart if spun on a
turntable. The Cobra 1500 is available in a wide range of prices
and capabilities and offers several options to meet even the most
challenging stretch packaging operations.
|
|
 Muller Cobra 525 - semi-automatic
rotary arm
The Cobra 525 provides a cost effective means of wrapping in a semi-automatic
environment. It is particularly suited to wrapping light loads,
fragile loads, or any load which might fall apart if spun on a turntable.
|
Contact Us for details.
|
|
