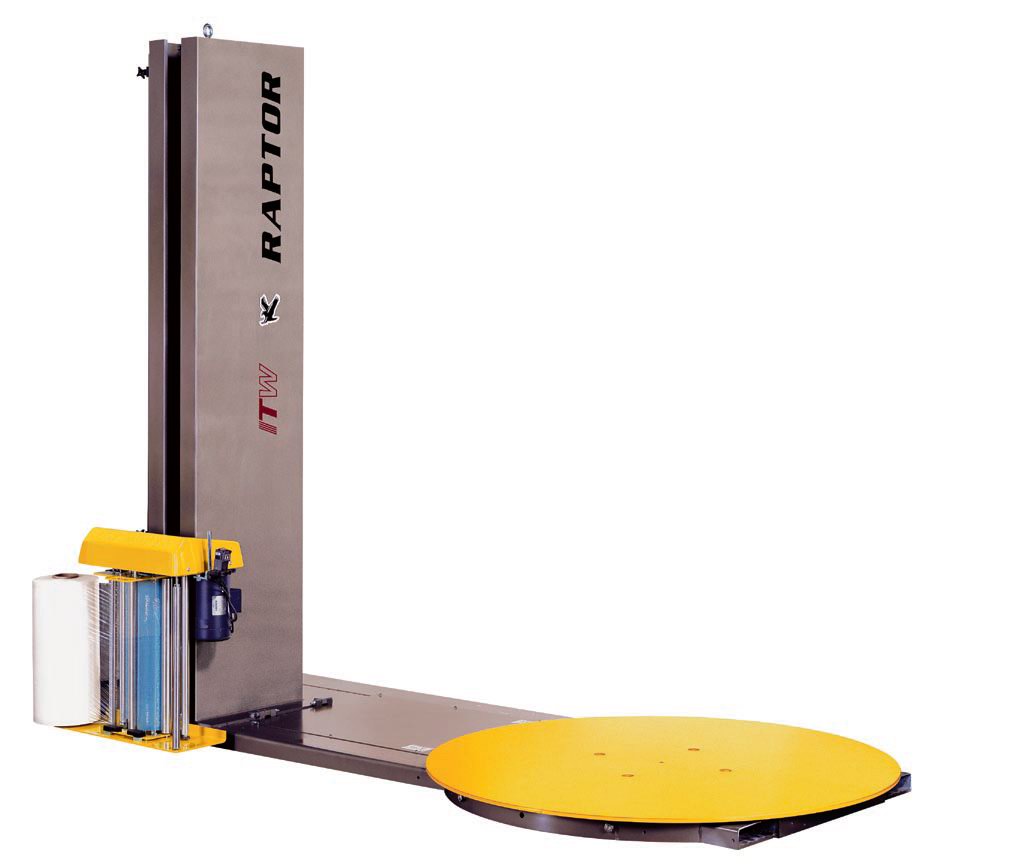

Muller Raptor 525
 Overview
The Raptor 525 uses low cost 20" width film to process
25 to 35 loads per hour. A unique modular design allows
greater interchangeability of elements, giving you total
control in designing a wrapper to your individual specifications.
Turntable Advantages
- The small footprint of the Raptor saves valuable floor
space.
- Being forklift portable, and using a standard 120 VAC
recepticle for power, allows the machine to be readily
moved to maximize the efficiency of your changing product
flows.
- The Raptor turntable stretch wrappers tend to be more
cost effective semi-automatic wrapping solutions.
Safety
The Raptor 525 is the first Muller turntable semi-automatic
stretch wrapper to feature a side mounted film carriage.
The benefits to this design are centred around improved
operator safety and ergonomics. By locating the operator
away from the turntable during film loading eliminates the
chance of the film loader getting pinned between the load
and the film carriage should another operator be loading
the turntable at the same time. Furthermore, it affords
the film loader a flat floor to walk on beside the wrapper,
rather than the potential trip point of the wrapper base.
It also eliminates the potential for an operator to inadvertently
drive the film carriage down onto his toes. Coupled with
the safety features inherent in the Octo-Thread film carriage
which is standard issue on this model wrapper, this makes
the Raptor 525 one of the safest stretch wrappers currently
available in the industry.

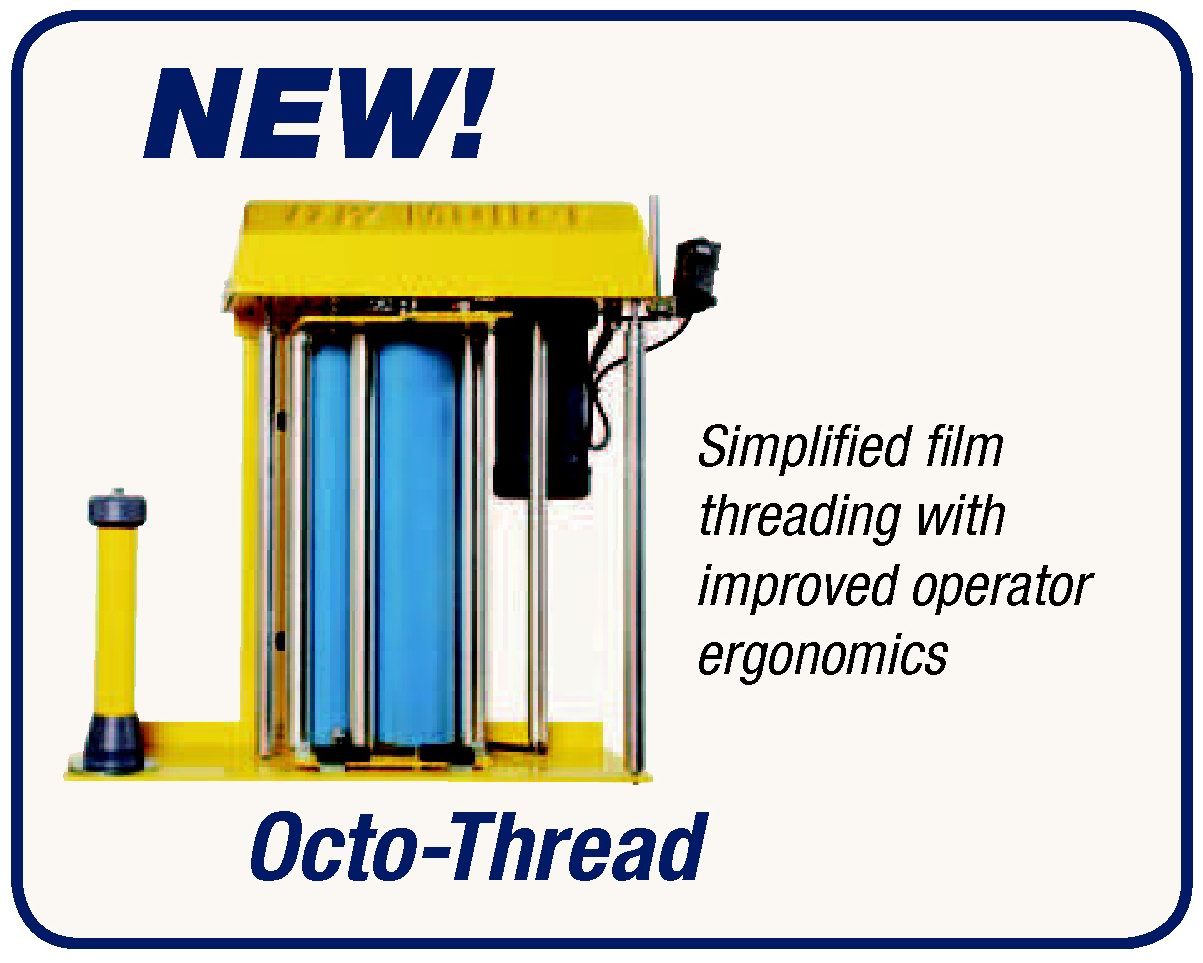

"Next Generation" Octo-Thread Powered Pre-Stretch 20"
Film Carriage
� "OCTO-THREAD" style film threading through the pre-stretch
rollers is easier and faster due to the front mounted film
treading gate which allows the operator to pull film through
the 20" carriage without having to thread the film manually.
� Film payout is controlled by a low maintenance fixed roller
with strain gauge.
Standard Machine Specifications: click
here for a PDF.
Click here for comparison
charts to help you find a Semi-automatic Stretch
Wrapper model to suit your needs and budget.
|

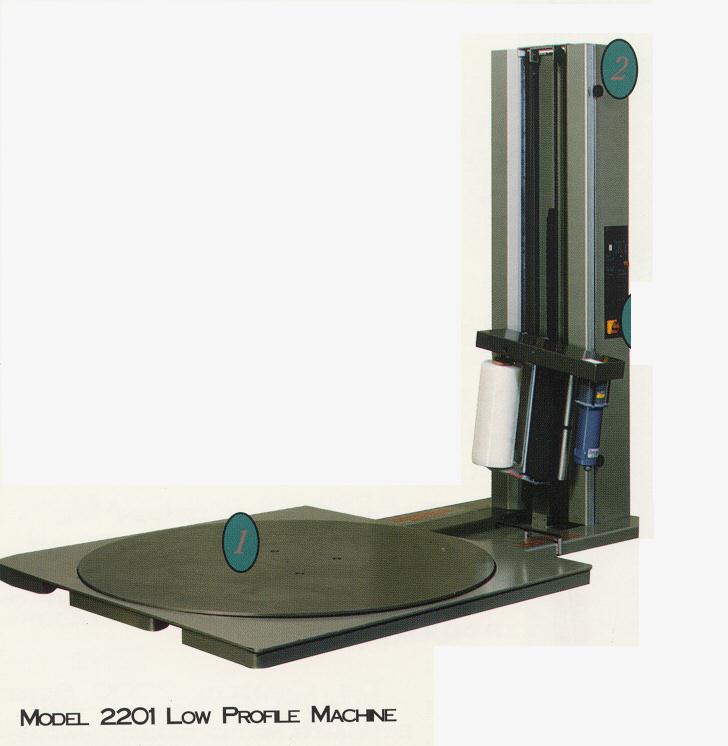

Previous generation turntable semi-automatic.
|
|
|
The Raptor 525 functionally replaces former
models:
EC-800, 101, 301, 303, 2101, 2103, 3.3, LP-446, HP-446, LPVZ-446,
HPVZ-446, LP-800, 501, 503, 701, 703, 2201, 2203, 4.4 and Raptor
500.
|
Please Note: The above specifications
do not represent all options available for these machine.
Please contact us for more information.
|
|
|
Muller's new models of stretch wrappers.
|
 Muller
Octopus 303 - automatic rotary
ring
• Compact, fits into tight areas
• Fits over existing conveyors
• Lowest priced Octopus automatic
• Wraps up to 40 loads per hour
|
 Muller
Raptor 1525 - automatic
turntable
For customers who prefer a traditional turntable style stretch
wrapping machine, the Raptor 1500 offers reliability and efficiency.
The Raptor 1525 is designed and built for long service life and
low maintenance operation. Heavy gauge steel, ring gear drive
systems and PLC controls are just a few of the features that makes
the Raptor 1525 the most rugged turntable wrapper in the industry.
|
|
 Muller Raptor 525 - semi-automatic
turntable
The Raptor 525 provides a cost effective means of wrapping in a
semi-automatic environment. It is suited to applications where portability,
ease of use, and an extensive array of options are the primary considerations.
|
 Muller Cobra 1525 - automatic
rotary arm
The unique rotating arm of the Cobra 1525 represents a means to
effectively wrap loads without spinning them on a turntable. This
method of wrapping is especially useful when wrapping light loads,
fragile loads, or any load which might fall apart if spun on a
turntable. The Cobra 1500 is available in a wide range of prices
and capabilities and offers several options to meet even the most
challenging stretch packaging operations.
|
|
 Muller Cobra 525 - semi-automatic
rotary arm
The Cobra 525 provides a cost effective means of wrapping in a semi-automatic
environment. It is particularly suited to wrapping light loads,
fragile loads, or any load which might fall apart if spun on a turntable.
|
Contact Us for details.
|
|
